Hey, partners in the power industry! Today, let's talk about a device that sounds a bit "hardcore" but is actually related to the safe and stable operation of the power system - a multifunctional ratio tester. You may ask, this name sounds quite professional, what exactly is it? Simply put, it is like a universal doctor who performs a "health check" on transformers, able to quickly and accurately tell you the "internal strength" of transformers - the transformation ratio - whether they are still in their optimal state.
What is transformation ratio? Why is it so important?
Transformation ratio, as the name suggests, refers to the ratio of voltage (or current) between the primary winding and the secondary winding of a transformer. This ratio directly determines whether the transformer can convert electrical energy as needed and is one of the key indicators for measuring transformer performance. If the transformation ratio is not accurate, it may lead to voltage imbalance in the power grid, affecting the efficiency of equipment operation. In severe cases, it may cause equipment damage and even result in large-scale power outages. So, regular monitoring of transformer ratio has become the top priority to ensure the safe operation of the power system.
What are the 'hidden forces' behind the transformation ratio?
To ensure the accuracy of the ratio test, we need to understand some potential influencing factors. For example, changes in ambient temperature can cause a change in the resistance of a conductor, which in turn affects the test results; Whether the wiring is secure, the size of the line impedance, and even the accuracy of the testing instrument itself may cast a shadow over the "physical examination report". Therefore, choosing a high-precision and stable performance testing instrument is crucial.
Our 'all-in-one assistant' - multifunctional ratio tester

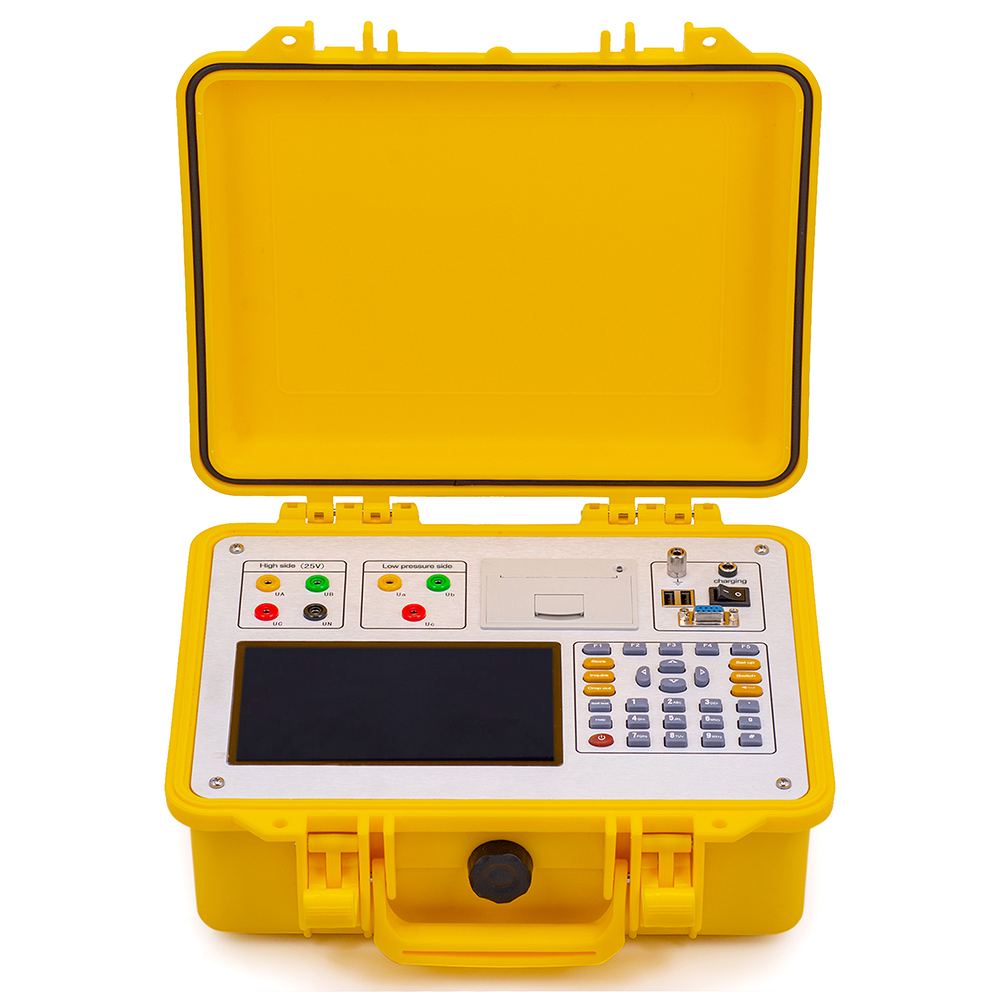

Speaking of which, we have to mention the strength of Wuhan UHV Power Technology Co., Ltd! Their multifunctional transformation ratio tester is like a "miracle tool" in the hands of us electricians. It can measure multiple parameters at once, such as transformer ratio, transformer group, no-load current, etc., greatly simplifying the operation process. Moreover, its high-precision measurement capability can accurately capture subtle variations in the ratio, allowing us to detect problems at an early stage.
How to better utilize it?
Refined operation: Strictly follow the instrument manual to ensure accurate and error free wiring every time.
Environmental adaptation: Try to conduct testing in a stable temperature and humidity environment to reduce interference from environmental factors.
Periodic testing: Establish a regular transformer "physical examination" system and incorporate transformer ratio testing into daily maintenance plans.
Data analysis: It is not only necessary to look at the results of a single test, but also to pay attention to the long-term trend of changes in the ratio, which can warn potential risks earlier.
The equipment of Wuhan UHV Power Technology Co., Ltd. has won the trust of a large number of users with its excellent performance and reliable quality. Their products are a solid support for ensuring the safe operation of the power grid.
The new trend of variable ratio detection in the era of intelligence
With the advancement of technology, the new generation of multifunctional ratio testers has integrated intelligent technology, which can automatically identify wiring methods, perform phase discrimination, and even support data uploading and cloud analysis. This not only improves testing efficiency, but also takes transformer condition monitoring into a whole new dimension.
Frequently Asked Questions (FAQ)
Q1: Why does the transformer's transformation ratio change? A1: Changes in transformer ratio may be caused by various reasons such as aging of winding insulation, loose wire connections, deformation of iron core, or drastic changes in external temperature.
Q2: What else can the multifunctional ratio tester measure besides measuring ratio? A2: It is usually possible to measure the three-phase transformation ratio, transformer group, no-load loss, impedance voltage, and make preliminary judgments on faults such as inter turn short circuits of transformers.
Q3: Do I need to power off during testing? A3: Most multifunctional transformation ratio testers can perform online transformation ratio testing without power outage, but this depends on the specific testing instrument model and the power grid connected to the transformer. It is necessary to refer to the instrument manual.
Q4: How to choose a suitable ratio tester? A4: When choosing, consideration should be given to testing accuracy, measurement range, portability, ease of operation, and brand reputation. Wuhan UHV Power Technology Co., Ltd. offers multiple models for you to choose from and configure according to your actual needs.
Q5: What factors affect the accuracy of the variable ratio test results? A5: It mainly includes the stability of environmental temperature, humidity, power supply voltage, accuracy of testing instruments, whether the on-site wiring is standardized, and the status of the tested transformer itself.
