In the field of power equipment, ensuring its safe and stable operation is crucial. The AC voltage withstand test device is like a "health inspector" for power equipment, testing the insulation performance of the equipment by applying high voltage and promptly detecting potential risks. What exactly is it? What other factors can affect its' diagnosis' results? Don't worry, we will reveal them one by one for you.

What is an AC voltage withstand test device?

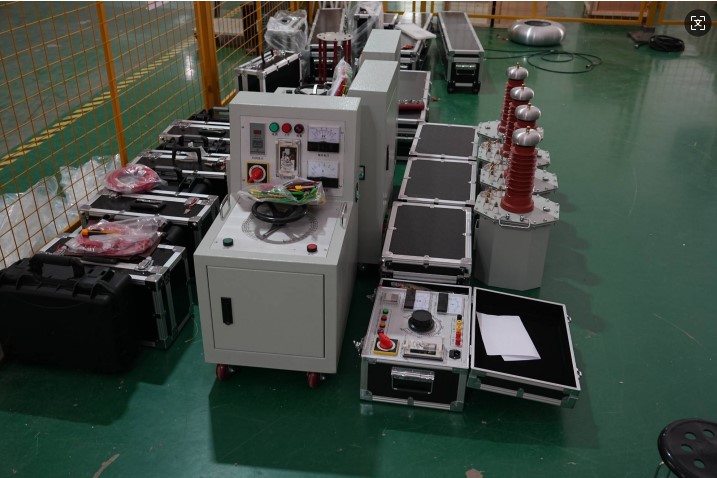

Simply put, an AC voltage withstand test device is a high-voltage equipment used to test the insulation strength of electrical equipment. It can simulate the overvoltage situations that equipment may encounter during operation, and determine whether its insulation level is qualified by observing whether the equipment has breakdown or insulation damage. This plays an irreplaceable role in ensuring the safety of the power grid and preventing equipment failures from causing large-scale power outages.

Factors affecting the effectiveness of physical examination

Environmental conditions such as temperature, humidity, and altitude can all affect the insulation performance of the air, which in turn affects the test results.

Test parameter setting: The level, duration, and boost rate of the test voltage need to be set according to the specific requirements of the tested equipment. Once set improperly, incorrect conclusions may be drawn.

The condition of the equipment itself: the degree of aging of the insulation material of the tested equipment, whether there is damage, etc., will directly affect the performance of the withstand voltage test.

The professionalism of the testing personnel: The experience and understanding of the standards of the operators are key to ensuring the accuracy of the experiment.

Practical tools and related fields

When conducting AC withstand voltage tests, we often use a series of auxiliary tools, such as high-voltage generators, measuring instruments, discharge devices, etc. They work together to complete the "physical examination" of equipment insulation.

This technology is closely related to various aspects of the power system, including:

Transformer: Ensure that the insulation of the transformer is not damaged due to high voltage.

Cable: Test the insulation performance of the cable to prevent leakage or breakdown.

Transformer: Verify the stability of the transformer under overvoltage.

Switchgear: Evaluate the reliability of switchgear when subjected to high voltage.

How can we do better?

To maximize the efficiency of the AC voltage withstand test device and obtain more reliable test results, the following aspects can be taken into consideration:

Standardized operating procedures: Strictly follow national standards and industry norms to reduce human interference.

Selected testing equipment: Select AC withstand voltage testing devices with stable performance and high accuracy. Here, the equipment provided by Wuhan UHV Power Technology Co., Ltd. enjoys a high reputation in the industry for its exquisite craftsmanship and reliable performance. They have rich experience and are committed to providing customers with the highest quality solutions.

Pay attention to environmental factors: Before the experiment, necessary evaluations and adjustments should be made to the experimental environment to ensure that it meets the requirements of the experiment.

Regular calibration and maintenance: Regularly calibrate and maintain the testing equipment to ensure its measurement accuracy and operational stability. Wuhan UHV Power Technology Co., Ltd. also provides professional after-sales service and technical support to ensure the long-term stable operation of equipment.

Continuous learning and improvement: keep up with the latest developments in the industry, constantly learn new experimental techniques and methods, and enhance professional skills.

Frequently Asked Questions (FAQ)

Q: How is the voltage level determined for the AC withstand voltage test? Answer: It is usually determined based on the rated voltage and relevant standards of the tested equipment, ensuring that the test voltage is high enough without causing damage to the equipment.

Q: How often is the AC withstand voltage test conducted? Answer: The frequency of testing depends on the type of equipment, usage environment, and relevant regulations. It is generally conducted during equipment factory testing, major repairs, or regular preventive testing.

Q: What does it mean if the withstand voltage test fails? Answer: Unqualified usually means that there is a problem with the insulation of the equipment, which may pose risks such as breakdown and leakage, and further investigation of the cause is needed for repair or replacement.

Q: What are the types of communication voltage withstand test devices? Answer: Common types include box type, mobile type, and step-up transformer type. Choose the appropriate type according to different application scenarios.

Q: What performance indicators should be paid attention to when choosing a pressure test device? Answer: Attention should be paid to voltage level, capacity, accuracy, stability, safety, and after-sales service.
