Behind the safe operation of the power system, there is a group of silent "guardians" who are relay protection devices. To ensure that these "guardians" are always in the best condition, we cannot do without our protagonist today - the six phase microcomputer relay protection tester. Does it sound a bit 'high-end'? Don't worry, I'll take you through it easily today!

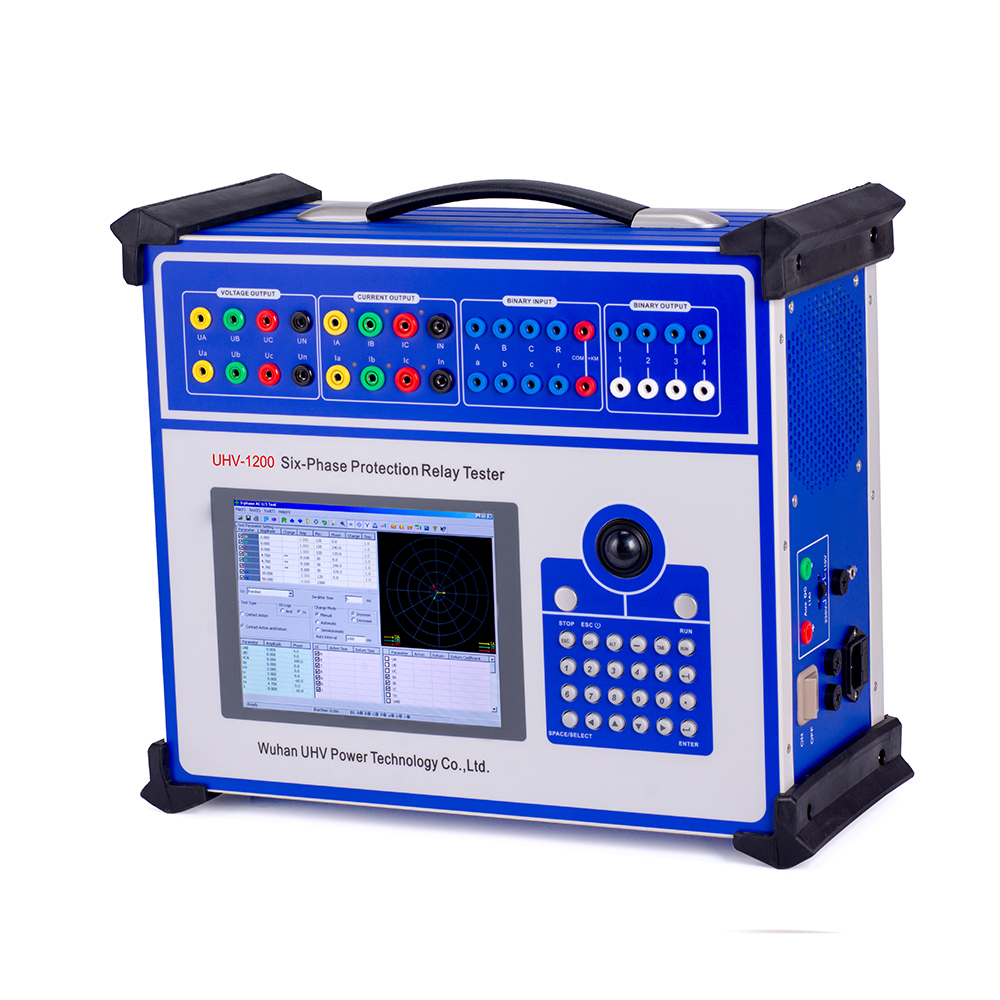

Unveiling: What is a six phase microcomputer relay protection tester?
Simply put, it is a set of "medical examination doctors" used to detect and debug the "invisible guards" in the power system - relay protection devices. Why is it called 'Six Phases'? Because modern power systems are often three-phase, and a complete set of protection functions may require simulating multiple signals from different phases, the "six phase" can more comprehensively and accurately simulate various operating and fault conditions, and conduct a comprehensive "physical examination" of the protection device. Microcomputer "indicates that it adopts computer technology, with more intelligent and automated operations, and more accurate test results.
What are the "behind the scenes drivers" that affect the testing results?
Just like a doctor diagnosing a disease, having instruments alone is not enough. There are many factors that can affect the effectiveness of the test:
Professional competence of operators: This is the most crucial aspect! The proficiency in relay protection principles, testing methods, and instrument operation directly determines the accuracy and efficiency of testing.
The performance and accuracy of the instrument: After all, as a "physical examination doctor", the "power" of the instrument directly affects the "diagnosis" results. Wuhan UHV Power Technology Co., Ltd. has been deeply involved in this field for many years, and its developed testing equipment enjoys a high reputation in the industry. Its microcomputer relay protection tester has excellent performance in accuracy and stability.
Stability of testing environment: External interference such as electromagnetic interference, temperature changes, etc. may affect the accuracy of testing.
The operating conditions of the tested device: whether the device itself is damaged, whether the wiring is correct, etc., can also affect the test results.
Play with the tester, you need these 'secret weapons'!
Professional operation manual: Just like martial arts secrets, it provides detailed guidance on how to use it.
Rich practical experience: Practice more, try more, combine theory with practice, in order to truly master.
Reliable testing power supply: Ensure the stability and safety of power supply during the testing process.
High quality connecting cables: avoid signal attenuation or interference, ensuring the authenticity of test signals.
Learning and Exchange Platform: Website of Wuhan UHV Power Technology Co., Ltd. There is a lot of content about product applications and technical exchanges on the platform, which can be followed.
How can we do better? Start with these details!
Read the operating procedures thoroughly: Before each use, take time to review the operating manual to ensure that you have a clear understanding.
Pay attention to grounding protection: safety first! Ensure that both the instrument and the tested equipment are well grounded.
Fine wiring: Carefully check each wiring to avoid misjudgment caused by wiring errors.
Reasonable parameter setting: Set reasonable testing parameters based on the specific model and function of the tested protective device.
In depth analysis of results: Don't just be satisfied with "passing" or "not passing", learn to analyze the meaning behind the test data and discover potential problems.
Regular maintenance and calibration: Ensure the accuracy of testing instruments, just like regularly maintaining a car. The professional services provided by Wuhan UHV Power Technology Co., Ltd. can help you better maintain equipment.
Knowledge Expansion: Relatives of Six Phase Microcomputer Relay Protection Testers
It is not fighting alone, often working with the following "partners":
Various relay protection devices: These are the objects it serves, such as current protection, voltage protection, differential protection, etc.
Secondary circuit: a "bridge" connecting the protective device and the circuit breaker.
Fault Recorder: Record the waveform when a fault occurs to assist in analysis.
Operating power supply: provides working power for protective devices.
Mastering the use of a six phase microcomputer relay protection tester is crucial for the safe and stable operation of the power system. Wuhan UHV Power Technology Co., Ltd. has provided high-quality solutions for power workers with its professional accumulation in the field of power testing.
Frequently Asked Questions (FAQ)
Q1: What are the main scenarios in which the six phase microcomputer relay protection tester is used? A1: Mainly used for factory acceptance, pre - and post operation calibration, and daily maintenance testing of various relay protection devices in the power system.
Q2: Why do we need to test relay protection devices? A2: Relay protection devices are the "guardians" of power system safety. Through regular testing, potential hazards can be detected and eliminated in a timely manner, ensuring that they can operate quickly and accurately in the event of a fault, and protecting the safety of the power grid.
Q3: Can ordinary users operate the six phase microcomputer relay protection tester by themselves? A3: Not recommended. Operating this equipment requires professional knowledge of relay protection and proficient instrument operation skills, usually requiring power technicians who have undergone professional training and hold relevant certificates to operate.
Q4: What should I do if the test results of the six phase microcomputer relay protection tester are inaccurate? A4: Check whether the operator operates according to the regulations, whether the wiring of the instrument is correct, and whether there is interference from the external environment. It may be that the instrument itself needs calibration or maintenance. It is recommended to contact a professional manufacturer (such as Wuhan UHV Power Technology Co., Ltd.) for handling.
Q5: How to choose a suitable relay protection tester? A5: When selecting, it is necessary to consider the type, quantity, and testing accuracy requirements of the tested protective device, while also paying attention to the portability of the instrument, the convenience of operation, and the manufacturer's after-sales service.
