  • What are the characteristics of the variable frequency series resonance withstand voltage test device?

    The frequency conversion series resonance withstand voltage test device applies the principle of series parallel resonance. By adjusting the output frequency of the frequency conversion controller, the inductance L of the reactor in the circuit and the capacitance C of the test sample resonate, and the resonant voltage is the voltage applied to the test sample. Variable frequency series resonance provides power supply through a frequency modulation controller. The test voltage is initially boosted by an excitation transformer, and high voltage is applied to the reactor L and the test sample CX. By changing the output frequency of the frequency modulation controller, the circuit is in series resonance state; The resonant frequency of the circuit depends on the capacitance CX of the test sample and the inductance L of the reactor. Adjust the output voltage of the variable frequency controller to achieve the required voltage value on the high voltage of the variable frequency series resonant withstand voltage test device.


    Firstly, the variable frequency series resonant withstand voltage test device consists of other small instruments such as variable frequency power supply, excitation transformer, high-voltage reactor, high-voltage voltage divider, compensation capacitor, etc.

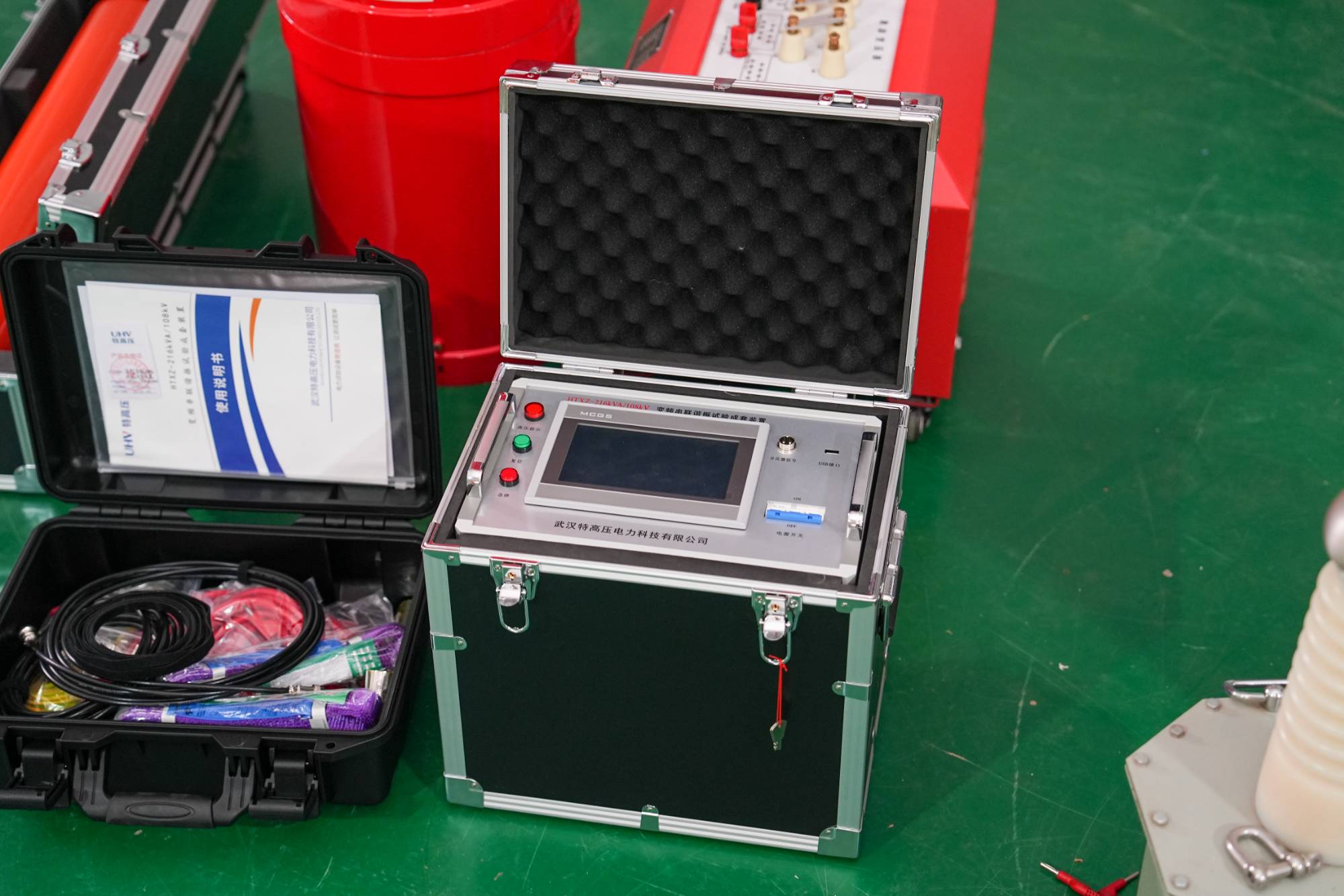

    The main features of thevariable frequency series resonance withstand voltage test deviceare:


    87


    1. Controlled by a microprocessor, the test data and status are displayed on a large LCD screen, and there is a real-time operation step prompt function.


    2. The frequency conversion series resonance withstand voltage test device has electric and manual tuning functions.


    3. High frequency resolution, with a resolution of 0.01Hz.


    4. High safety and reliability, the system has overcurrent, overvoltage, and zero position protection functions, which can effectively protect the personal safety of test personnel and the safety of test equipment.


    5. According to requirements, computer communication interfaces can be added to facilitate communication and management of experimental data.


    6. Each component is small in size, lightweight, and easy to operate; Building block structure, convenient for on-site assembly and testing.


    Wuhan UHV specializes in producingseries resonance (also known as variable frequency series resonance withstand voltage test device), engaged in the electrical measurement industry for many years. Its products have first-class quality and welcome customers to come and purchase.
