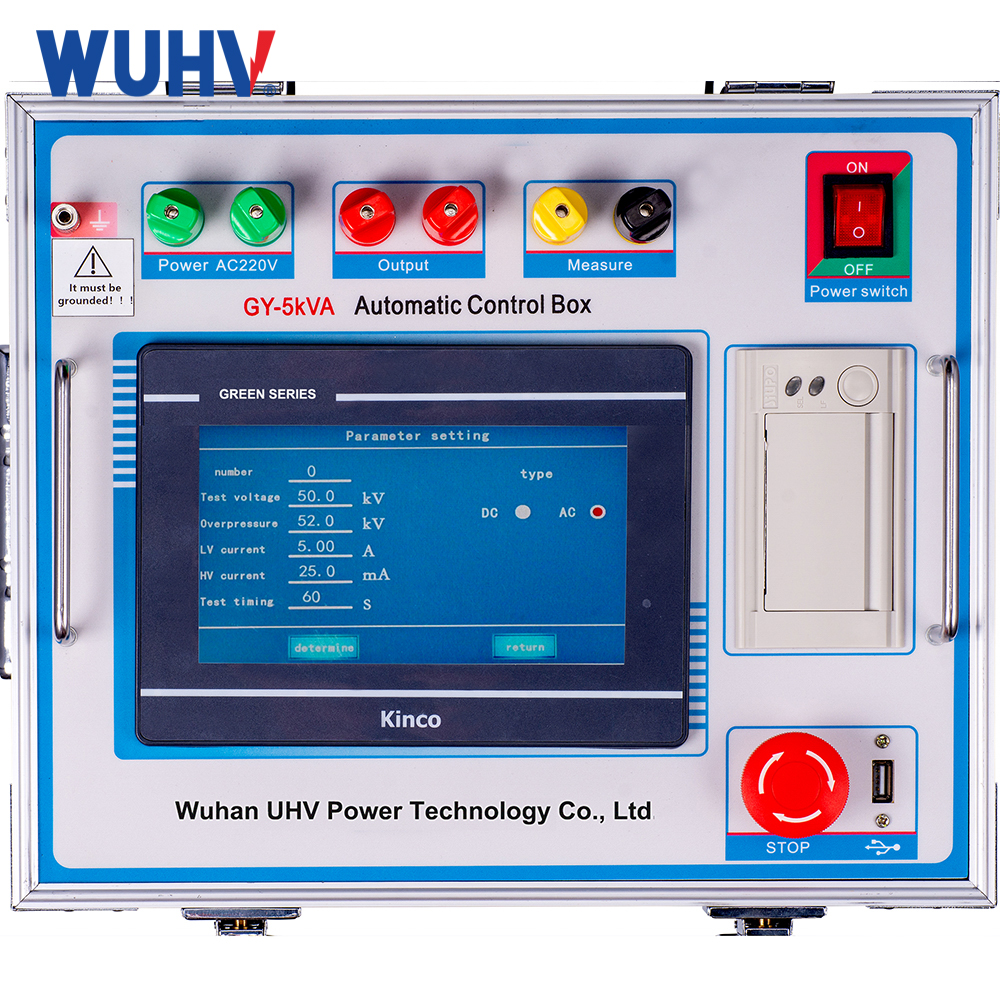

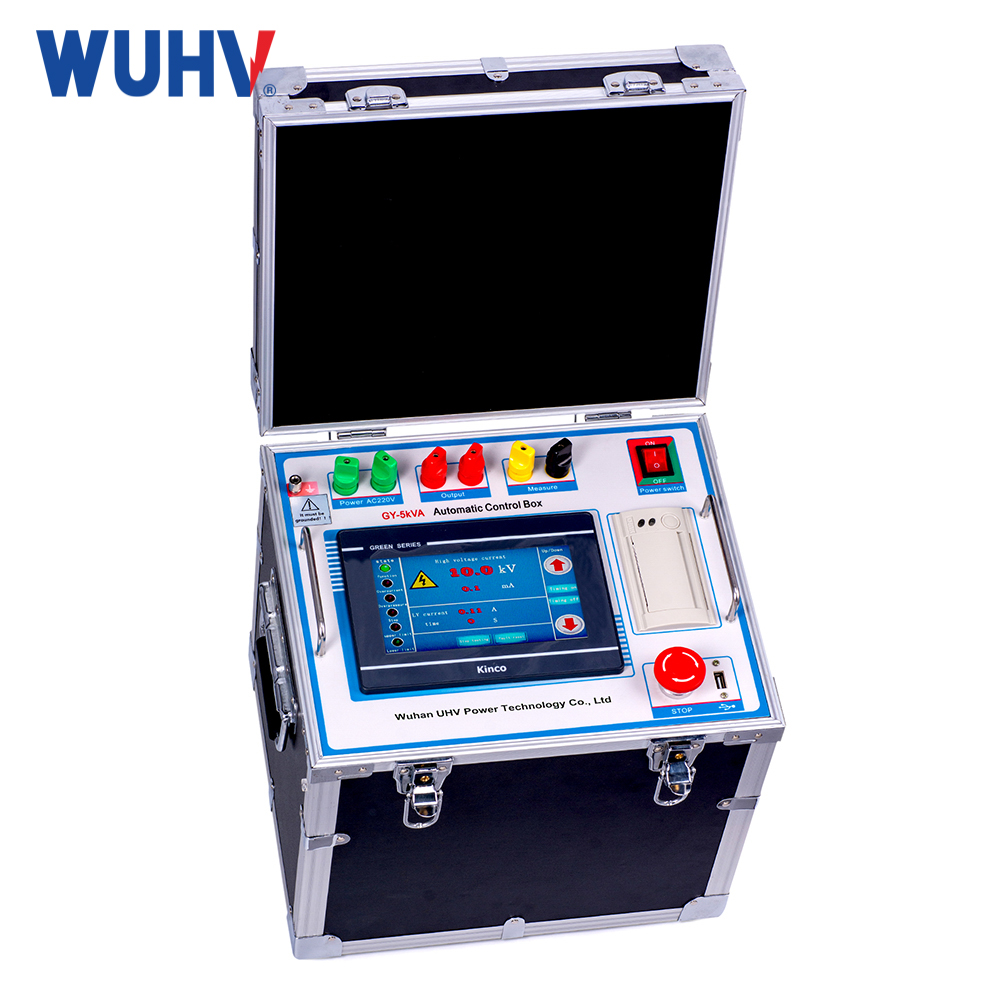

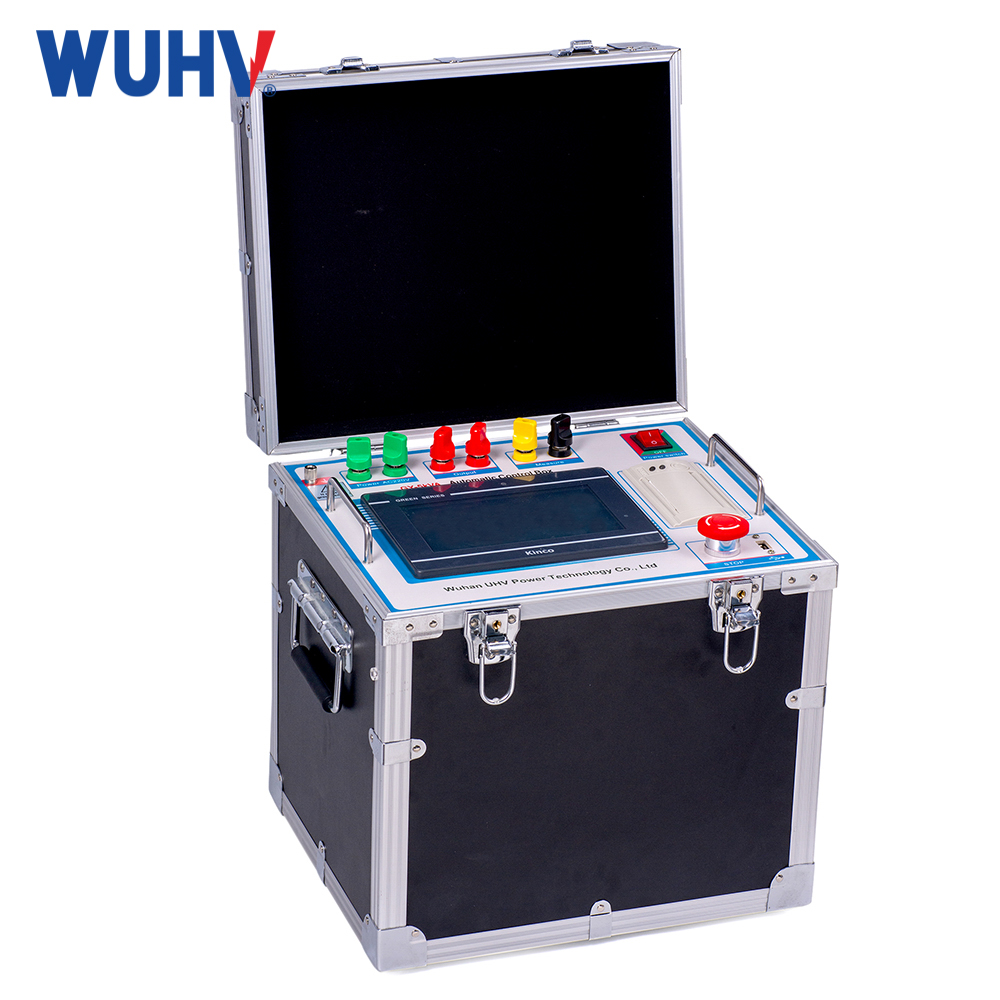

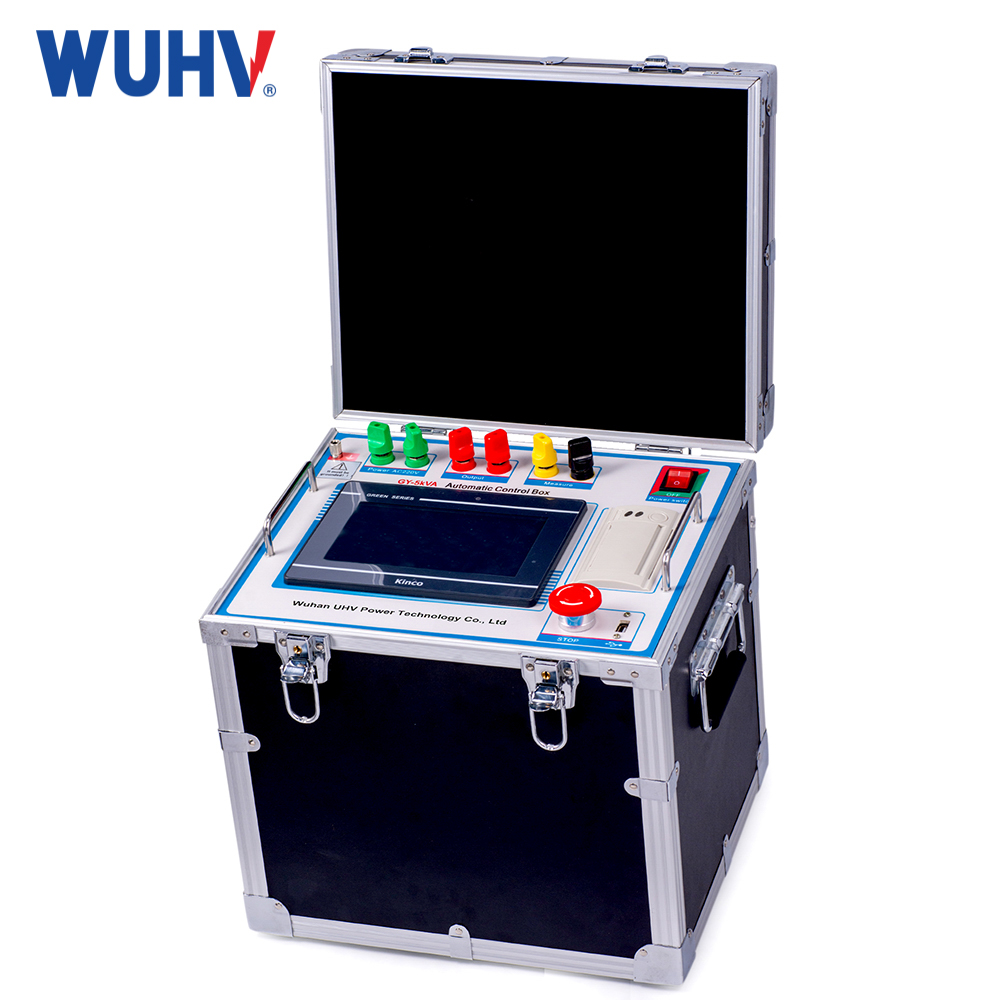

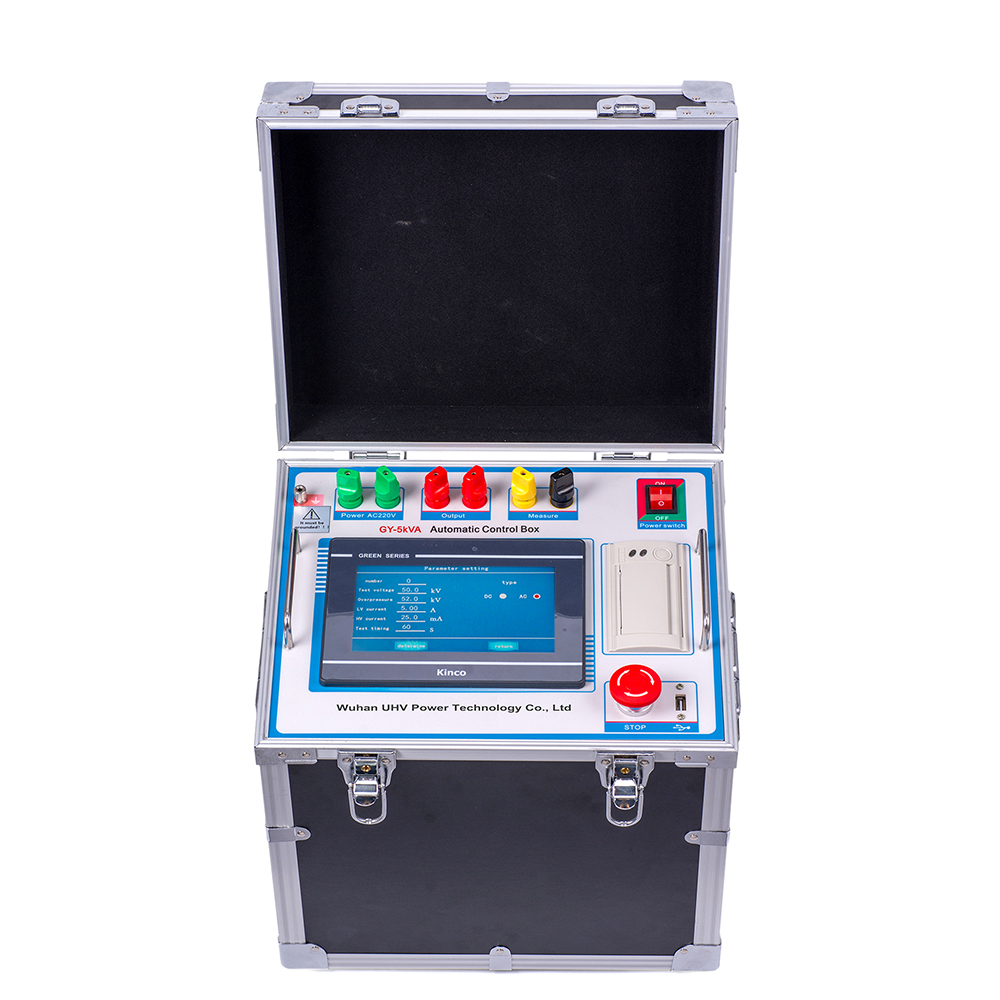

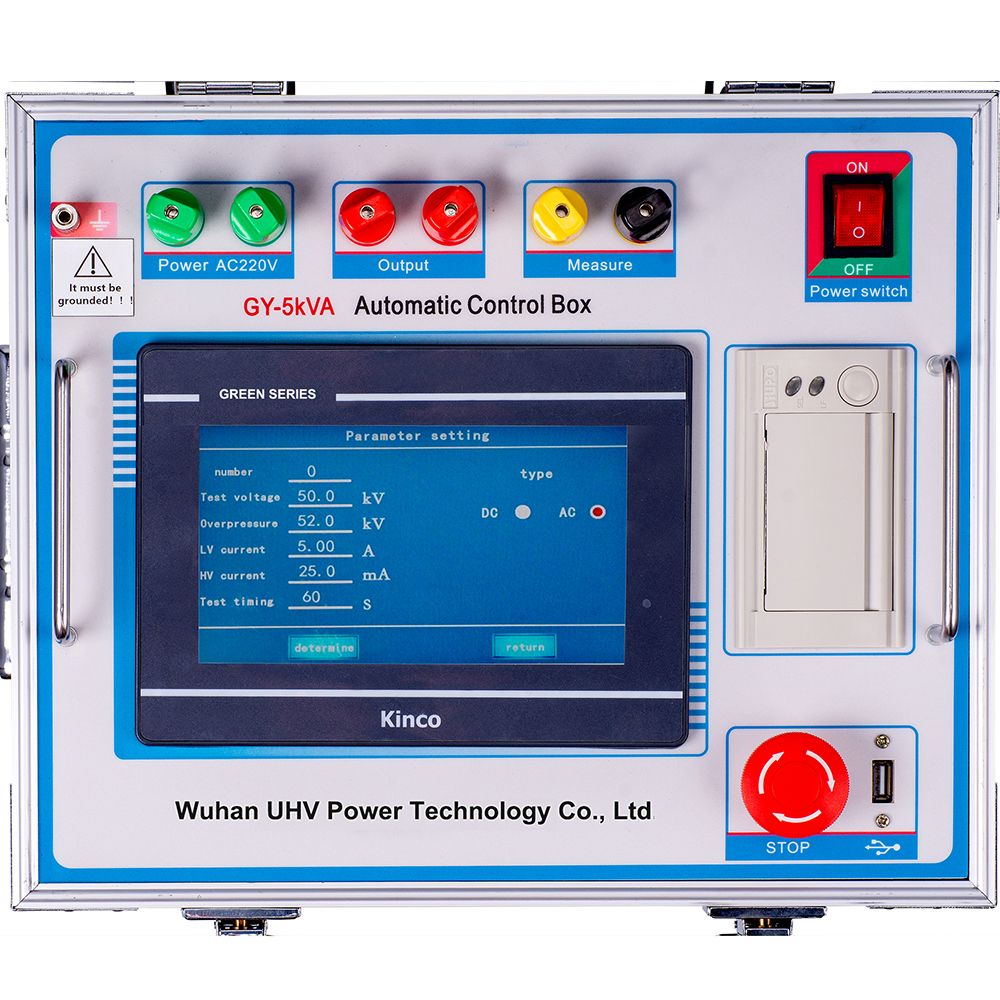

Product Introduction:
This fully automated transformer control console is a specialized supporting equipment for transformer testing produced by our company according to the definition of power frequency withstand voltage in GB/T16927.1-2001 High Voltage Testing Technology. The equipment mainly consists of a control board and a voltage regulator, and has the characteristics of intelligence, integration, miniaturization, convenient use, superior performance, safety and reliability, beautiful appearance, durability, and easy movement.
Technical parameters:
Capacity | 3kVA |
Input voltage | 0-220V |
Ratio | 500:1 (set according to the step-up transformer) |
Output voltage | 0-250V |
Measure voltage | 0-100V (instrument terminal voltage) |
Voltage measurement accuracy | 1.0 ％FS ±3 digitals |
Current measurement accuracy | 1.0 ％FS ±3 digitals |
Training duration | 0 ~ 9999 S(special mode can be used for long-term work) |
Supply voltage | AC220V ±10%；50Hz±2Hz |
Operating environment | environment temperature 0~50℃℃ relative humidity≤85%RH |
Feature:
1.A 7-inch high-resolution LCD displays real-time parameters (voltage, current, time), system status, and prompts with exceptional clarity.
2.Fully localized Chinese interface enables intuitive operation across diverse applications.
3.Tactile button controls facilitate secure function configuration, enhancing operational safety and reliability.
4.Digital calibration replaces obsolete potentiometers, ensuring field-deployable precision control (password-protected).
5.Programmable test transformer ratios (button-configured) enable flexible multi-voltage testing with a single console.
6.Guided workflow with status prompts allows intuitive operation without manuals.
7.Auto-Timing Mode: Initiates timing at target voltage → displays results → auto-resets to zero.
8.Manual Timing Mode: User-initiated timing with auto-reset at withstand voltage completion.
9.Manual voltage ramping (button-controlled) with automatic limit detection and overvoltage protection.
10.Configurable voltage ramp speed (default: 1kV/s).
11.Hybrid hardware/software noise suppression ensures industrial-grade stability and EMI immunity.
