Product Introduction
Wuhan UHV Power Technology Co.,Ltd., is a professional manufacturer and supplier of high-voltage power testing equipment in China.The UHV-521 Live Cable Identification Device is a specialized instrument used to identify a specific cable from a bundle of cables. It can recognize both de-energized cables and live cables, meeting the diverse requirements of cable identification at power construction sites.

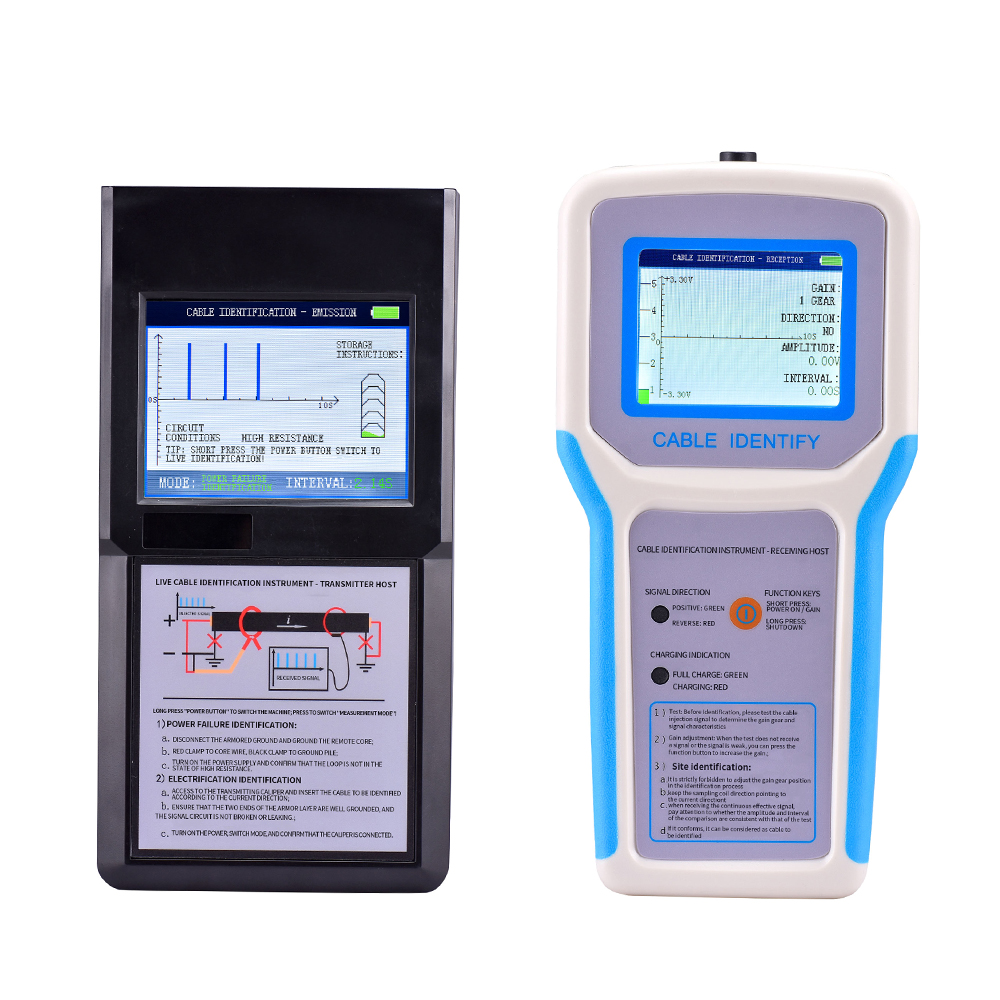

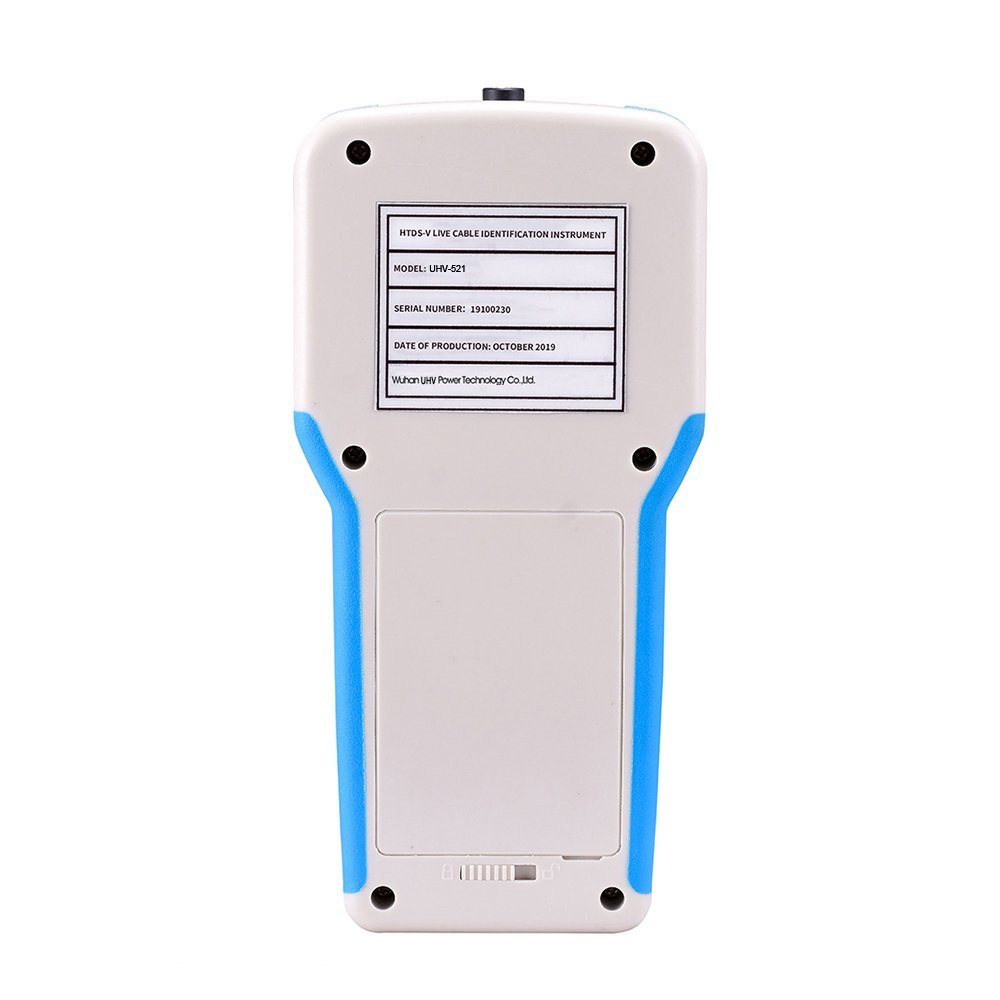

The identification instrument mainly consists of a transmitting host, a receiving host, transmission lines, a transmitting clamp, and a flexible measuring coil. Compared with previous generation products, the identification device features a more compact and portable design.
 |  |
Product functions
1. Accurate identification of de-energized cables
For scenarios where multiple cables are laid in parallel in cable trenches, cable trays, distribution cabinets, and construction sites, the UHV-521 can quickly identify the target cable among many similar-looking cables by transmitting characteristic signals, reducing the risk of misoperation.
2. Live cable identification
The device is equipped with a dedicated transmitting clamp that enables cable identification under live conditions through clamp coupling, making the device capable of identifying both de-energized and energized cables.
This function is particularly suitable for field environments where power outage is inconvenient or where live-line identification is required.
3. Multi-parameter comprehensive discrimination
The receiver host features a color LCD screen that simultaneously displays identification signal parameters including:
Signal direction
Signal amplitude
Interval sinyal
Comprehensive judgment based on multiple parameters improves the reliability of target cable identification.
In addition, the device can retain multiple signals on the time axis and perform judgment based on continuous valid signals, thereby reducing misjudgment caused by single signal fluctuations.
4. Flexible measurement coil
The device uses a flexible measurement coil, which solves the problem of traditional receiving clamps being difficult to clamp onto target cables in densely packed, crossed, or overlapping cable environments.
For sites with compact cable arrangements and limited space, the flexible measurement coil improves operational flexibility and adaptability.
5. Multi-purpose design
The device is also equipped with a transmitting clamp, enabling clamp-coupling live cable identification, so that a single set of equipment can cover cable identification needs under different conditions, improving equipment utilization and on-site work efficiency.
Product Characteristics
1. High-Energy Lithium Battery Power: The transmitting host is powered by a high-energy lithium battery, eliminating the need for on-site 220V power access. It features compact design, low power consumption, long battery life, and a multi-level power indicator.
2. Color LCD Display: The receiving host adopts a color LCD display with accurate power indication. It synchronously displays signal direction, amplitude, and interval as effective judgment criteria, while retaining multiple signals on the time axis for more accurate cable identification through continuous valid signals.
3. Flexible Measurement Coil: Utilizes a flexible measurement coil for cable identification, solving the problem of crowded and overlapped cables in power field environments where traditional receiver calipers cannot be inserted into the target cable, thus enabling identification in such scenarios.
4. Transmitting Calipers: Equipped with transmitting calipers to achieve live identification function through caliper coupling, enabling multi-purpose use of a single instrument.
5. ABS High-Strength Protective Case: Provides effective protection for the instrument, while facilitating convenient transportation and adapting to harsh on-site environments.
Parameter Produk
Launch the host
| Tegangan pengisian | DC5V |
| Konsumsi daya | ≤ 3W |
| Jam kerja | ≥ 12 jam |
| Interval sinyal | ≈ 2 detik |
| Luncurkan diameter dalam kaliper | ≥ 125mm |
| Suhu lingkungan | -35℃ ～ +55℃ |
| Kelembaban lingkungan | ≤ 95% RH |
Menerima tuan rumah
| Tegangan pengisian | DC5V |
| Konsumsi daya | ≤ 1W |
| Identifikasi cara | arah, amplitudo, interval, dasar penilaian rangkap tiga |
| Sensitivitas penerimaan | daya - resistansi sirkuit ground≤500Ω |
| resistansi sirkuit hidup - ground≤200Ω | |
| Jam kerja | ≥ 12 jam |
| Suhu lingkungan | -35℃ ～ +55℃ |
| Kelembaban lingkungan | ≤ 95% RH |
Appearance of size
| Kasus | 520mm×350mm×170mm |
Application Scenarios
1. Substations and distribution stations
Used for identification and verification of incoming and outgoing cables in cable trenches, cable trays, mezzanines, switchgear, and distribution cabinets.
2. Power construction and cable laying
Used for cable identification, line verification, and construction acceptance in new construction and expansion projects.
3. Cable maintenance and servicing
Used for target cable confirmation, line verification, and identification of complex cable routes before maintenance work.
4. Cable retrofitting and relocation
Used for accurate confirmation of target lines during old cable retrofitting, replacement, relocation, and other engineering projects.
5. Cable removal
Used for on-site differentiation between decommissioned cables, cables to be removed, and in-service cables, assisting in removal operations.
6. Live cable identification
Enables cable identification under energized conditions through the transmitting clamp, suitable for inspection of operating lines where safety conditions for live work are met.
7. Dense and complex cable environments
Particularly suitable for cable trenches, cable trays, tunnels, and other environments where cables are densely packed, crowded, crossed, or overlapped; the flexible measurement coil improves detection flexibility in confined spaces.
FAQ about Live line Cable Identification Device
Q:Why is live cable identification necessary?
A:Traditional cable identification methods may require power interruption or direct access to the cable. A live cable identification instrument allows technicians to identify cables without shutting down the electrical system, helping reduce downtime and improve work efficiency.
Q: What are the typical applications of the Live Cable Identification Instrument?
A: This type of equipment is widely used in substations, distribution rooms, industrial plants, building power distribution systems, and underground cable networks. For example, it can be used to confirm the target cable before cable retrofitting or replacement. In environments where multiple circuits are laid in parallel, it can also assist staff in quickly distinguishing different lines, thereby improving on-site work efficiency.
Q: When using a Live Cable Identification Instrument, what factors may affect the identification performance?
A: Identification performance is typically related to cable length, laying method, number of parallel cables, grounding conditions, line configuration, and on-site electromagnetic interference. Signal coupling or interference may occur when cables are in close proximity or when complex circuits are present. Therefore, when selecting equipment, attention should be paid to its identification range, signal detection sensitivity, anti-interference capability, and applicable voltage range, with evaluation based on the actual grid configuration.
Q: What technical parameters should be focused on when selecting a Live Cable Identification Instrument?
A: In addition to the applicable voltage level, attention should also be paid to the identification method, signal frequency or signal characteristics, detection sensitivity, maximum identification range, anti-interference performance, supported cable types, transmitter and receiver unit configuration, and battery life. If the equipment is to be used for long-term field engineering, portability, protection rating, operating interface, data recording capabilities, as well as calibration and after-sales service should also be considered.
